01
Dimensions and capacities
Swipe sideways to see all measurements
| Series | Capacity | A | B | C |
|---|---|---|---|---|
| SAN FRANCISCO PE | 1600 | 2420 | 950 | 1980 |
| SAN FRANCISCO PE | 2000 | 2420 | 950 | 2280 |
| SAN FRANCISCO PE | 2400 | 2420 | 950 | 2530 |
02 · Crop-spraying tanks
San Francisco PE
Product description
San Francisco PE is a mounted polyethylene tank for crop spraying, offered in nominal capacities of 1,600, 2,000 and 2,400 litres. The technical data sheet provides dimensions, effective capacities and auxiliary-tank capacities for every version.
Capacity
Request information about this product1600 L2000 L2400 L
Technical data sheet · San Francisco PE
Drawings, capacities and measurements.
The letters shown in the drawings correspond to the table columns. The values are reproduced from the official product sheets without conversion.
02
Effective capacities and auxiliary tanks
Swipe sideways to see all measurements
| — | Main tank | System-rinsing tank | Hand-washing tank |
|---|---|---|---|
| SAN FRANCISCO PE 1600L | 1750L | 200L | 20L |
| SAN FRANCISCO PE 2000L | 2200L | 200L | 20L |
| SAN FRANCISCO PE 2400L | 2540L | 200L | 20L |
Capacities are stated in litres. The measurements and capacities shown in the catalogue are indicative; always verify the configuration of the specific model when making an enquiry.

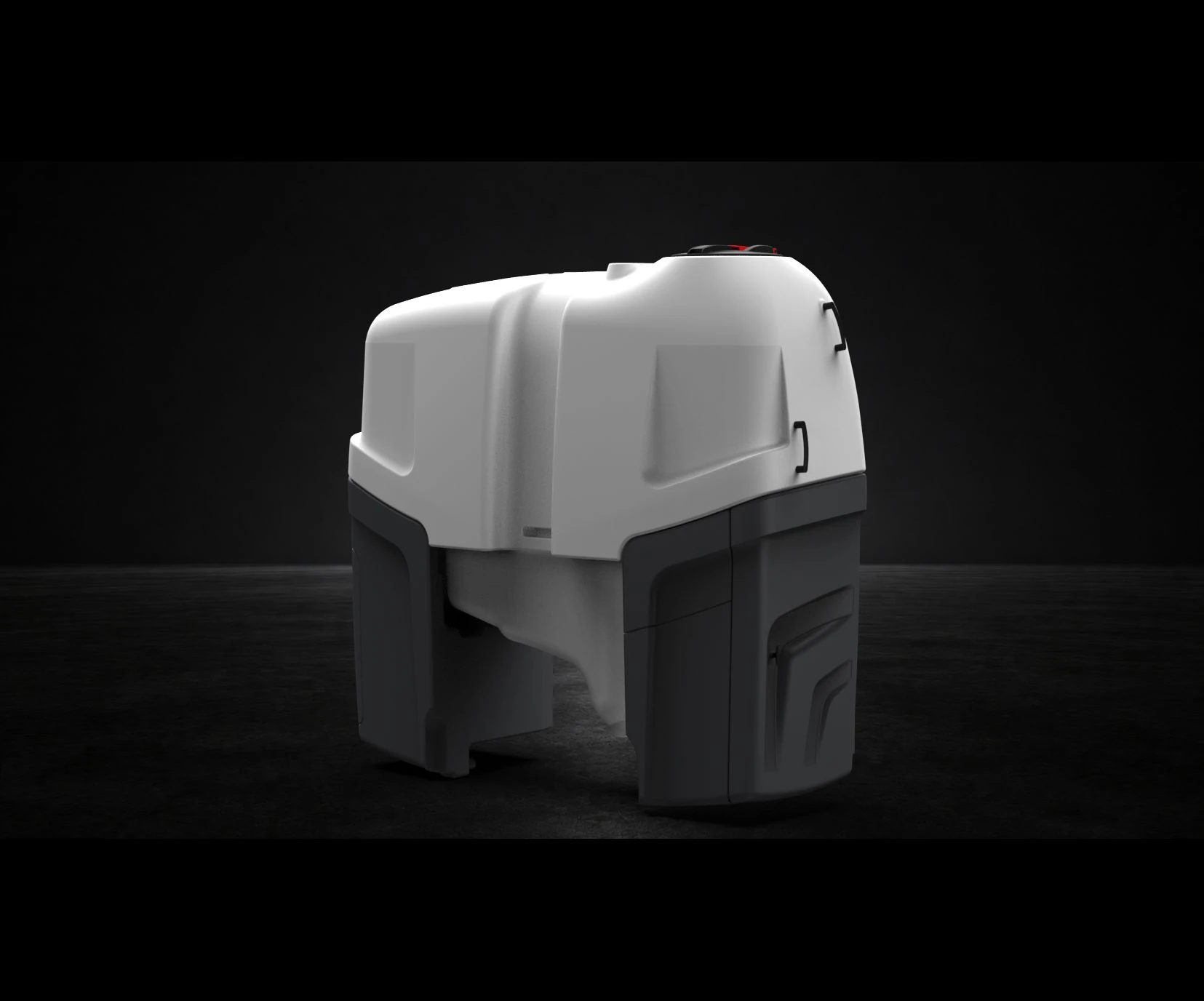

San Francisco PE · 2000 L
Configure San Francisco PE · 2000 L
Choose the tank and accessory colours separately.
Loading image…Zoom in and drag to explore the details. You can also use the arrow keys.
Images from the San Francisco PE · 2000 L configurator supplied by Vetroresina Padana. Screen colours are indicative: confirm the combination in your enquiry.
All product images.
The visual material available for this model is organised here for clear viewing, including on mobile devices.
